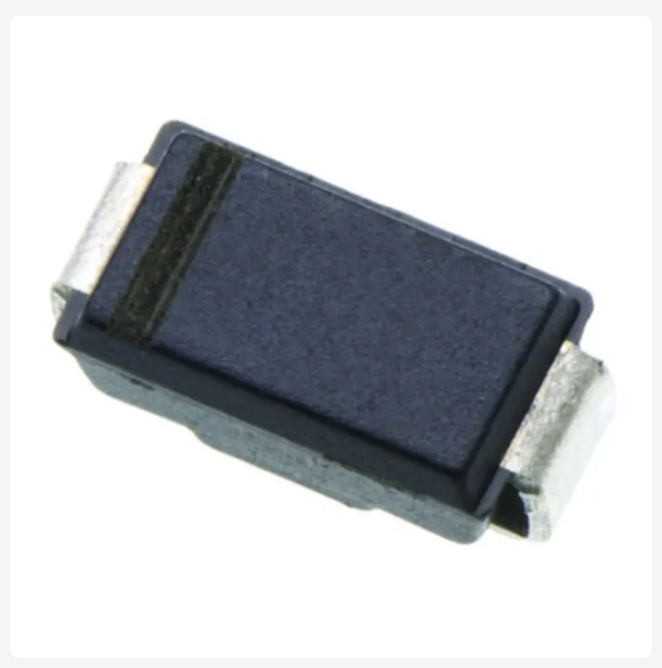

SMAJ33A Littelfuse Uni-Directional TVS Diode, 400W, 2-Pin DO-214AC

Sale price: Dhs. 1.25
Regular price
Regular price: Dhs. 1.25
Unit price: per

Shipping calculated at checkout.

Sku: SMAJ33A

Manufacturer: Camed

Only 2 items in stock! Out of stock!

Product variants

Quantity

Guaranteed safe checkout

Description

Specifications

Brand: Littelfuse

Direction Type: Uni-Directional

Diode Configuration: Single

Maximum Clamping Voltage: 53.3V

Minimum Breakdown Voltage: 36.7V

Mounting Type: Surface Mount

Package Type: DO-214AC (SMA)

Maximum Reverse Stand-off Voltage: 33V

Pin Count: 2

Peak Pulse Power Dissipation: 400W

Maximum Peak Pulse Current: 7.5A

Number of Elements per Chip: 1

Minimum Operating Temperature: -65 °C

Dimensions: 4.5 x 2.79 x 2.084mm

Maximum Operating Temperature: +150 °C

Test Current: 1mA

Maximum Reverse Leakage Current: 1µA

Length: 4.5mm

Height: 2.087mm

Width: 2.79mm

Product Details

TVS Diodes SMT Unidirectional 400W, SMAJ Series, Littelfuse

Transient Voltage Suppressors, Littelfuse

SMAJ33A Littelfuse Uni-Directional TVS Diode, 400W, 2-Pin DO-214AC

Dhs. 1.25
