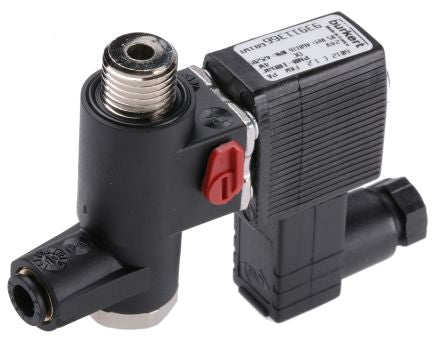

425285 - Burkert - Solenoid Valve 425285, 3 port(s) , NC, 24 V dc, 1/4in

Product Details

6012 Series 3//2 way, Miniature Normally Closed Solenoid Valves – Threaded Port Connection
Coil changed easily with valve in place
Coil can be locked in any one of four 90° positions or move free between, as required
Brass body, polyamide coil and FKM high quality seal material
Suitable for compressed air, water, hydraulic oil
Operating temperature –10 to +100°C max.
Power consumption 4W DC; 9VA (Inrush); 6VA (Hold)
Protection to IP65 with cable plug DIN43650C

3 Way Inert Gases and Fluid Valves
Compact solenoid valves suitable for most gas and fluid handling applications. Where practical, valves are shown
